CanXio is a new type of load hook for professional rigging applications in the event and entertainment industry. Its one-hand operation simplifies rigging, reduces the number of critical steps at height and minimises the typical risks of classic basket combinations.
The result: more safety, shorter set-up times
and a significantly more efficient workflow.
The classic process and how CanXio replaces it.
Secure the load, open the basket, insert the round sling, close the bolt. Usually several metres up, under time pressure, on a moving platform. Loose parts can drop.
CanXio opens with one hand and closes automatically, even with work gloves. No loose parts, fewer sources of error, higher process safety.
Cuts critical time at height by up to 80%.
CanXio replaces complex multi-part solutions with an intelligent, integrated rigging device with one-hand operation. The hook opens with just one hand and closes automatically. That makes the assembly process significantly safer, simpler and faster.
CanXio was developed specifically for the real working conditions of the event industry. Its innovative design significantly reduces the typical hazards of classic basket rigging.
Especially on complex builds under time pressure, CanXio sets a new safety standard in everyday rigging.
Time is one of the most critical factors in event technology. CanXio significantly reduces assembly effort and handling complexity.
For technical service providers, touring productions and rental companies this means faster project turnaround, higher productivity and more efficient crew planning.
Complex rigging assemblies increase the risk of operating errors, especially under stress and time pressure. CanXio is consistently designed for simple, unambiguous handling.
The integrated design substantially reduces the typical sources of error of classic basket combinations.
Rigging is one of the most physically demanding jobs in the event industry. CanXio noticeably improves working conditions:
CanXio thus supports not only safety but also the long-term health and performance of the crew.
Thanks to the reduced number of individual parts and a robust design, CanXio lasts significantly longer than conventional solutions. CanXio is compatible with standard rigging equipment.
Tap the points.

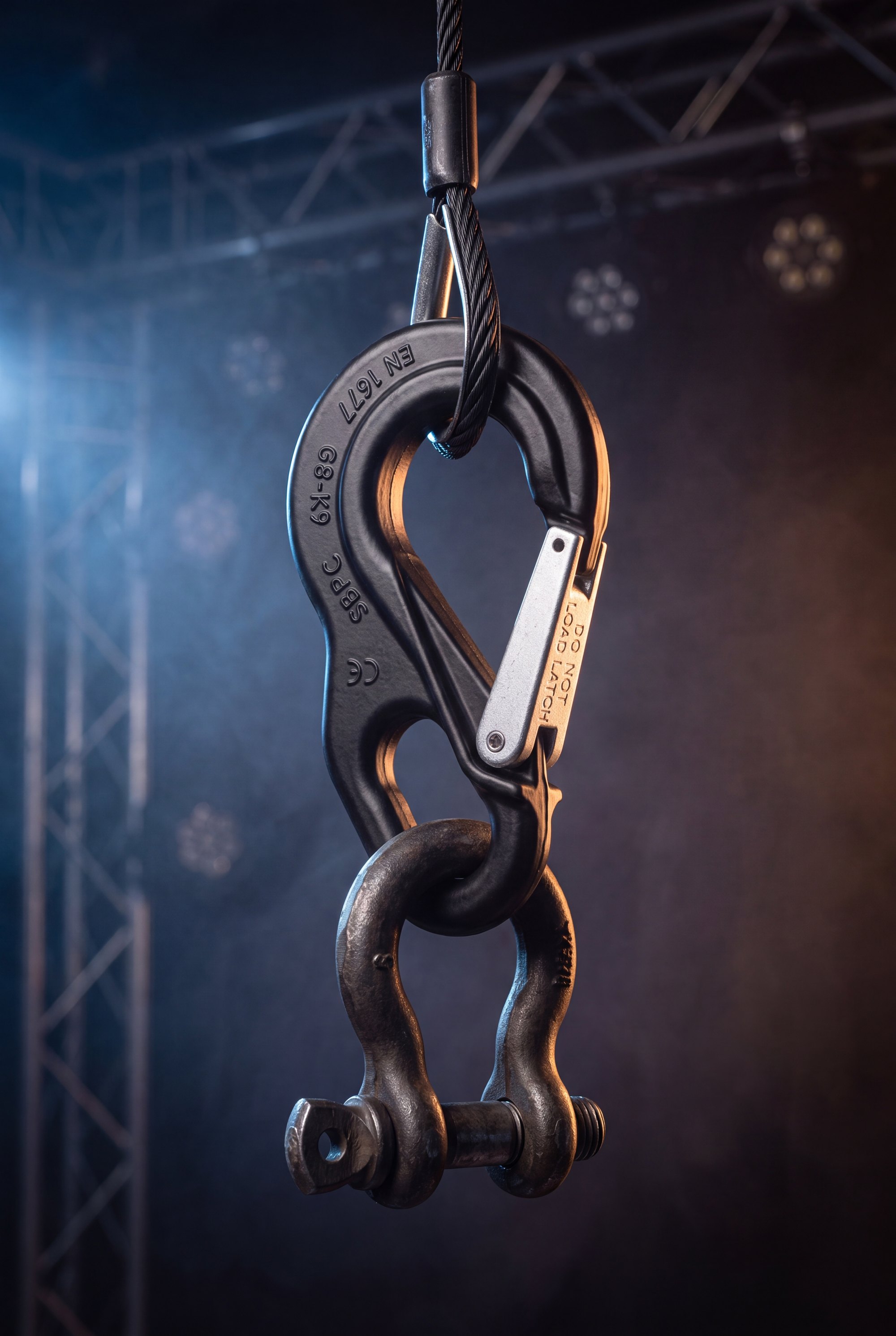

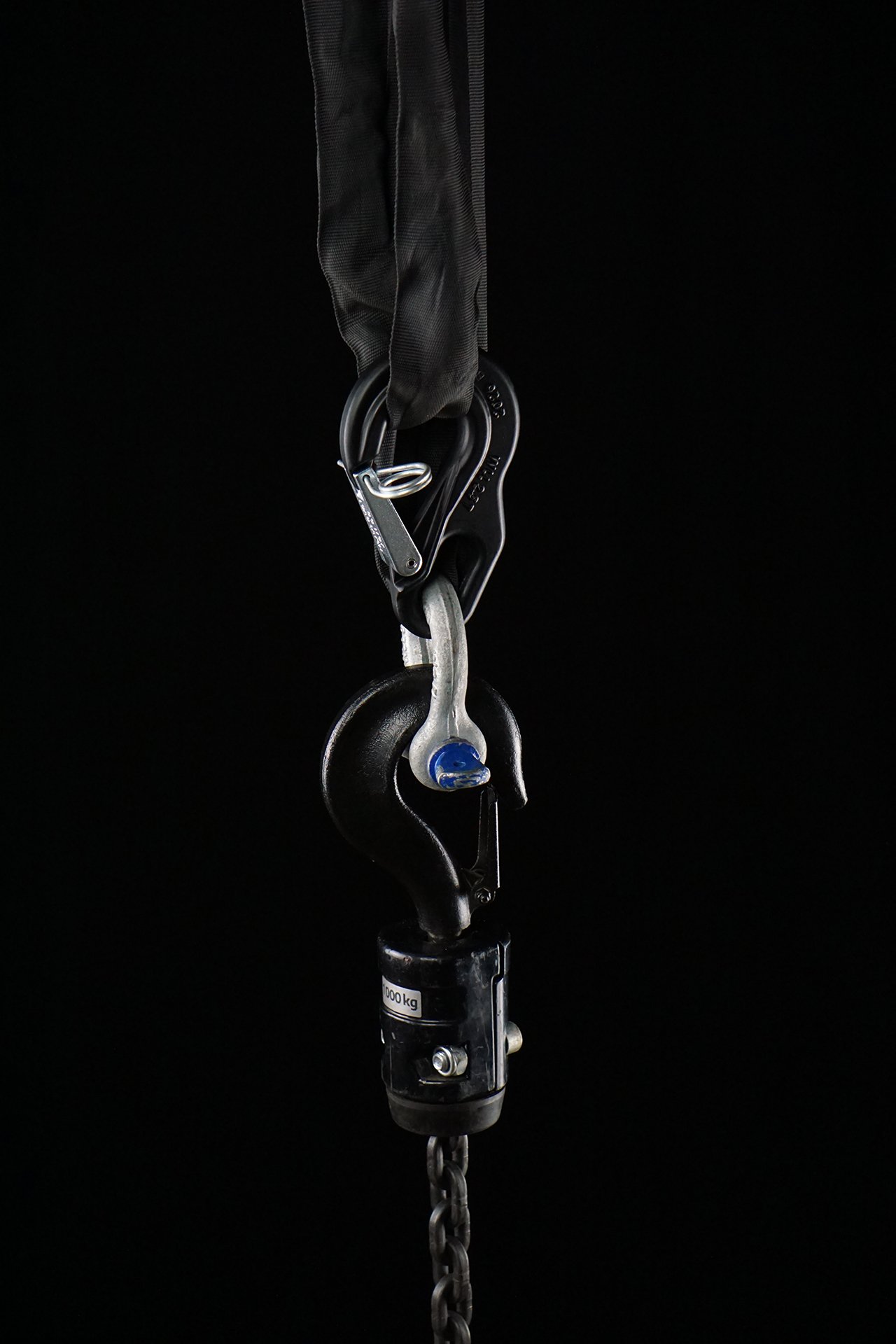

The specially engineered eye allows direct mounting on the bow (omega) of the shackle. Alternatively, the pin of a 3.25 t shackle (pin diameter ≤ 20 mm) can be passed directly through the eye. Its size makes over-sizing the shackle impossible.
| Working load limit (WLL) | 2,5 t |
| Grade / performance class | 8 / 9 |
| Breaking force (BF) | > 98,1 kN |
| Proof force (MPF) | > 61,3 kN |
| Material | quenched & tempered alloy steel |
| Finish | powder-coated, matte black (RAL 9005) |
| Dimensions | 148,4 × 90 mm |
| Material thickness | 5,4–20,4 mm |
| Weight | ca. 700 g |
| Application | Indoor & outdoor |
| Standards & conformity | DIN EN 1677 · ASME B30.10 · CE |
Standard for components of lifting slings. Confirms tested safety and load requirements.

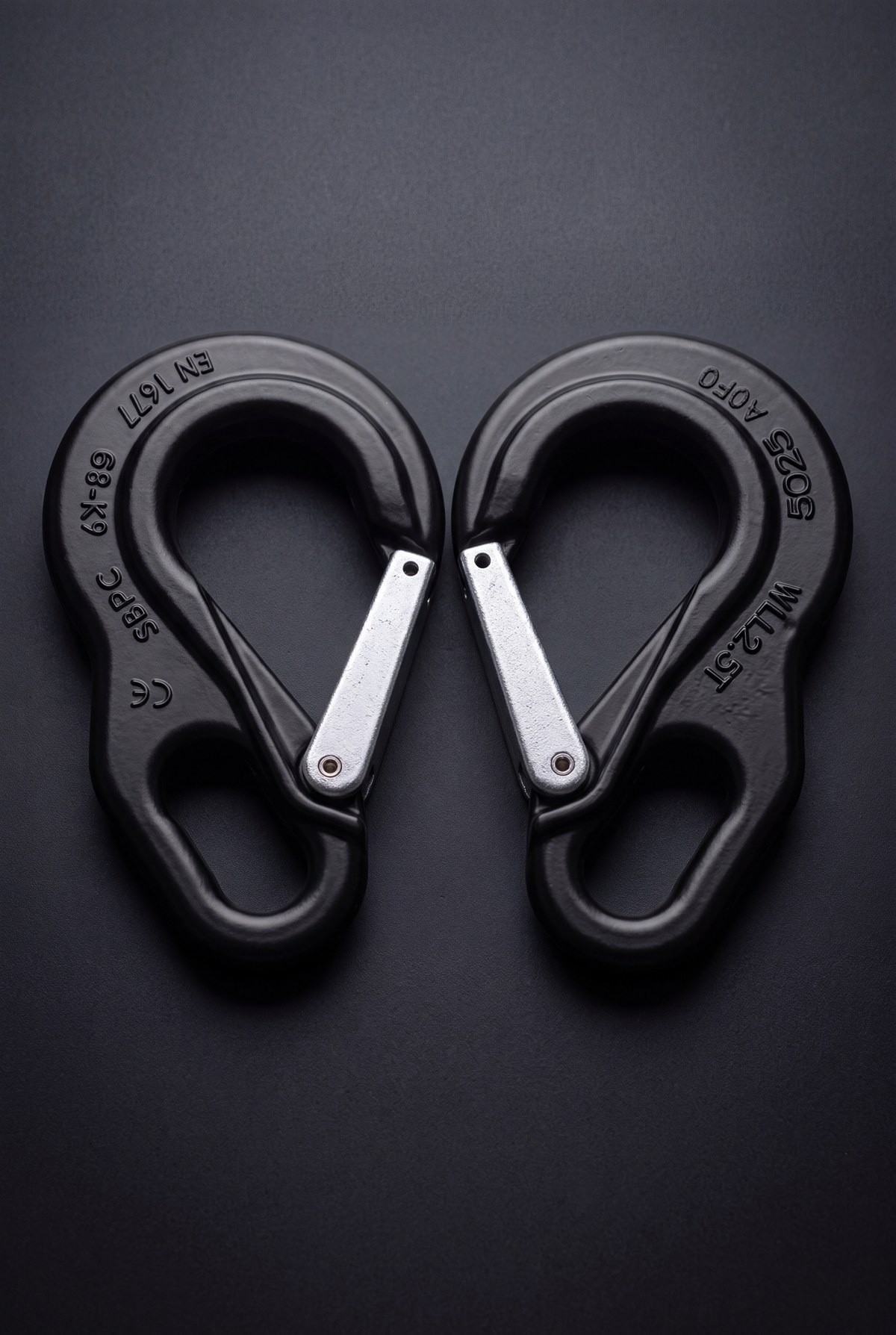

Tap the markings.
Drag to rotate.
Everything in one place: send your enquiry, register
for the download area or subscribe to product news.
Send an enquiryInterested or have a question about an application?
We'll get back to you quickly with all the details and a quote.
Documents for professionalsCertificates, operating manual and inspection documents. Access after free registration with your company email.
Stay in the loopProduct news, availability and the launch date straight from SilverBones. No spam, unsubscribe anytime.

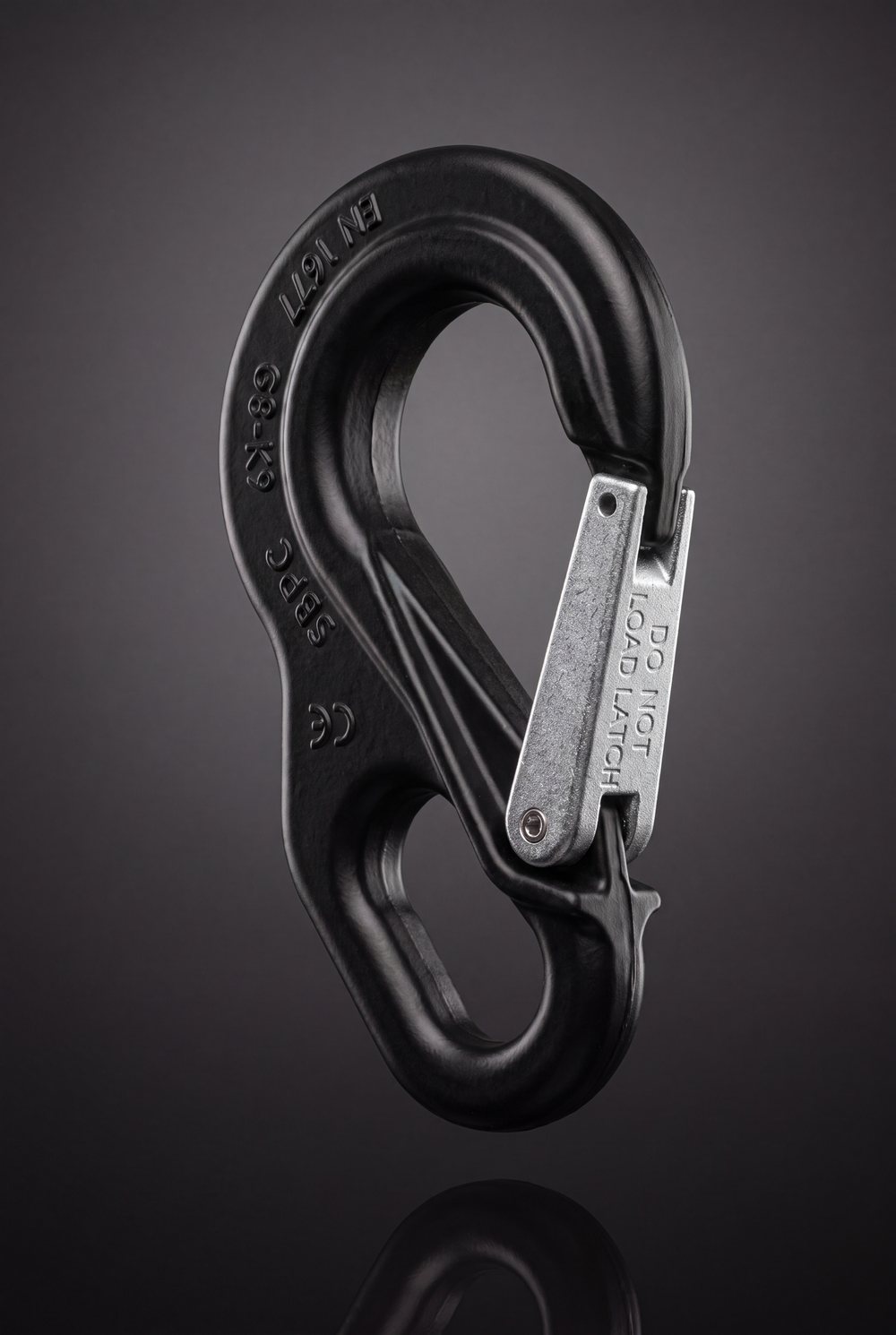

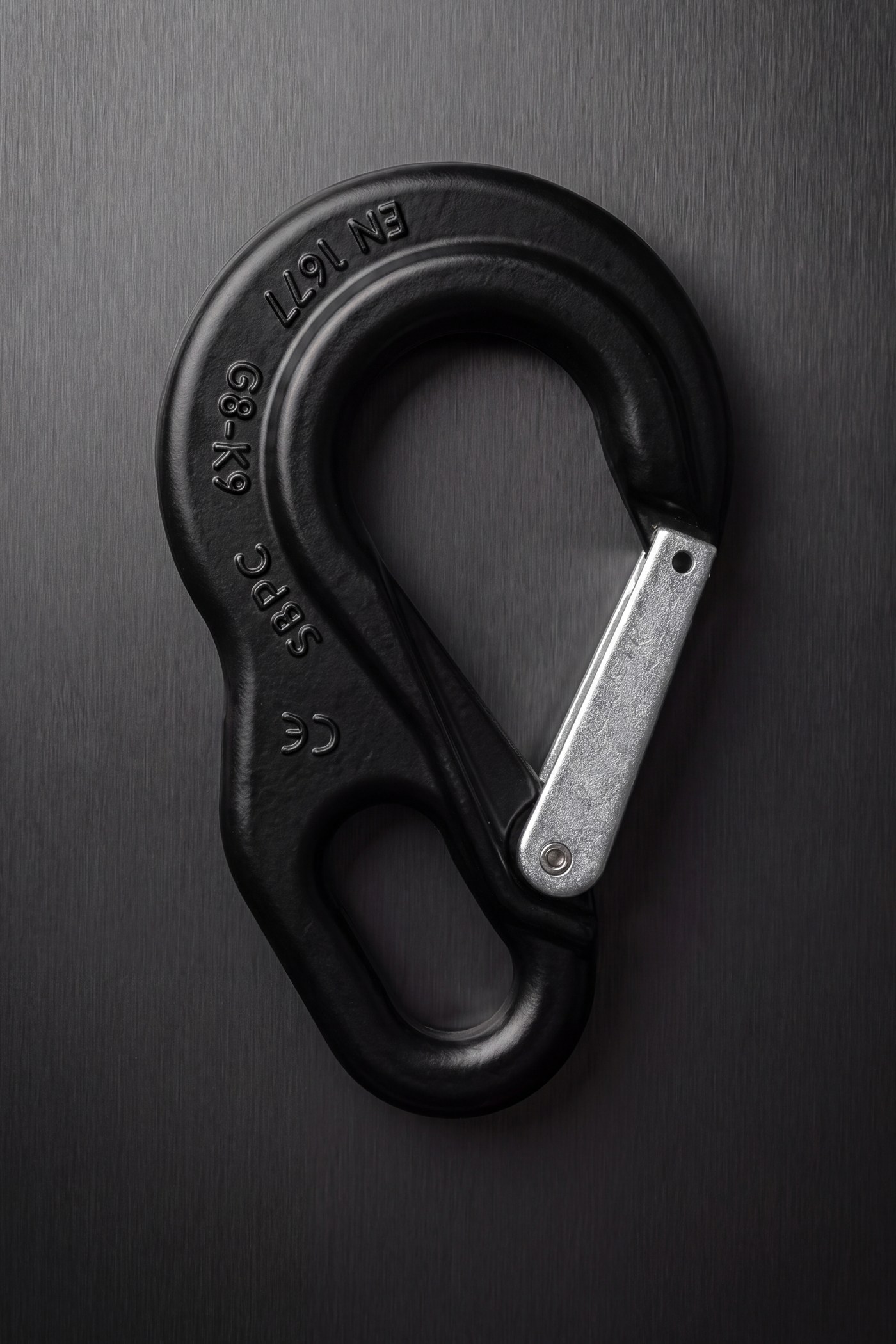

CanXio is a new type of load hook with one-hand operation. The special size and shape of its eye, the hole in the latch and the form-fitting hook tip without a catch edge provide clear safety benefits. It replaces the classic basket combination and cuts critical steps at height. Designed in Germany.
Opens with one hand, closes automatically, no loose parts, fewer sources of error. That lowers the risk of dropping parts and raises process safety.
For professional rigging: rigging companies, touring, event technology, rental, exhibition and stage building, venue technology, TV and studio productions.
WLL 2.5 t, grade 8 / performance class 9, breaking force over 98.1 kN. To DIN EN 1677 and ASME B30.10, CE-compliant. Full values in the data sheet.

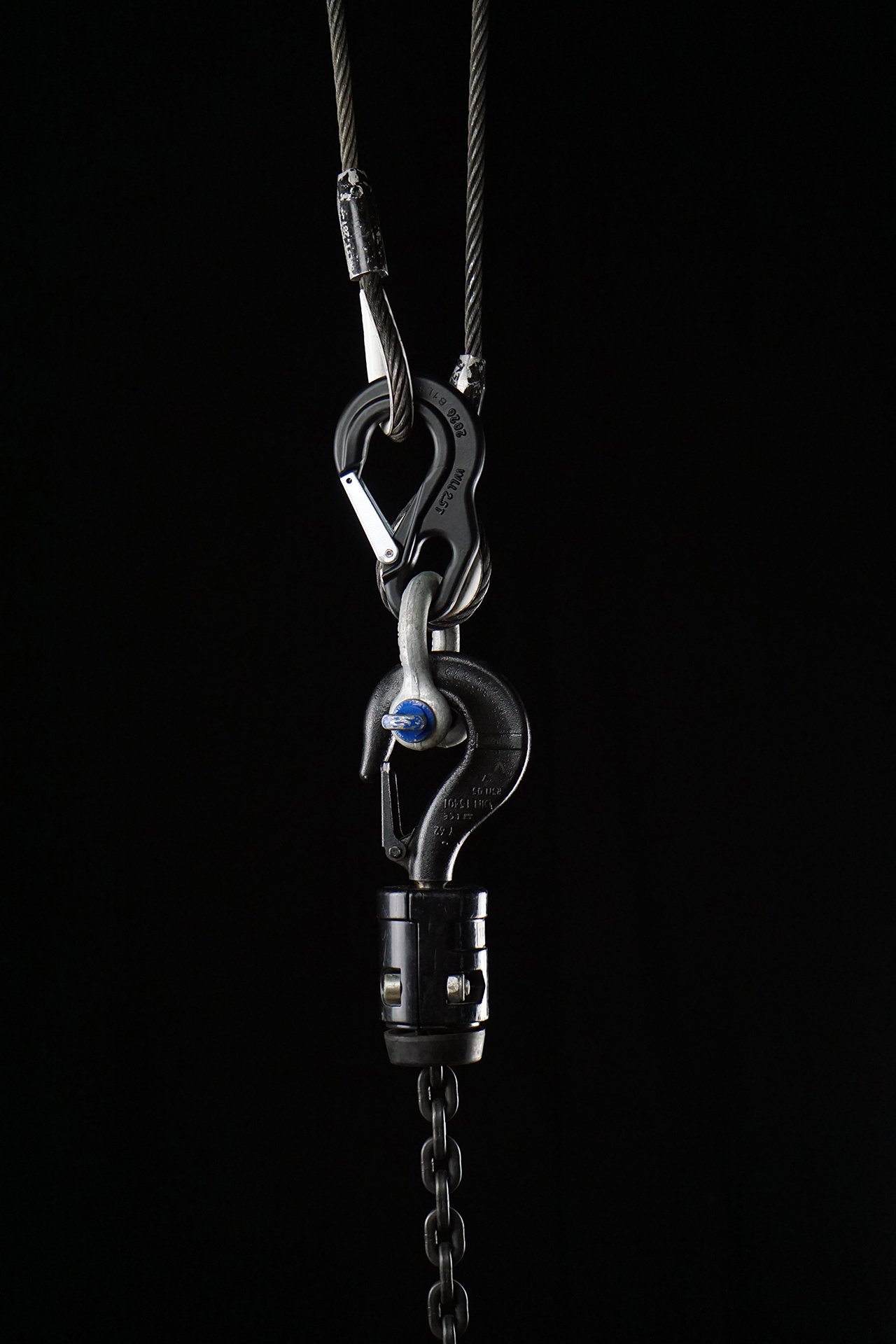

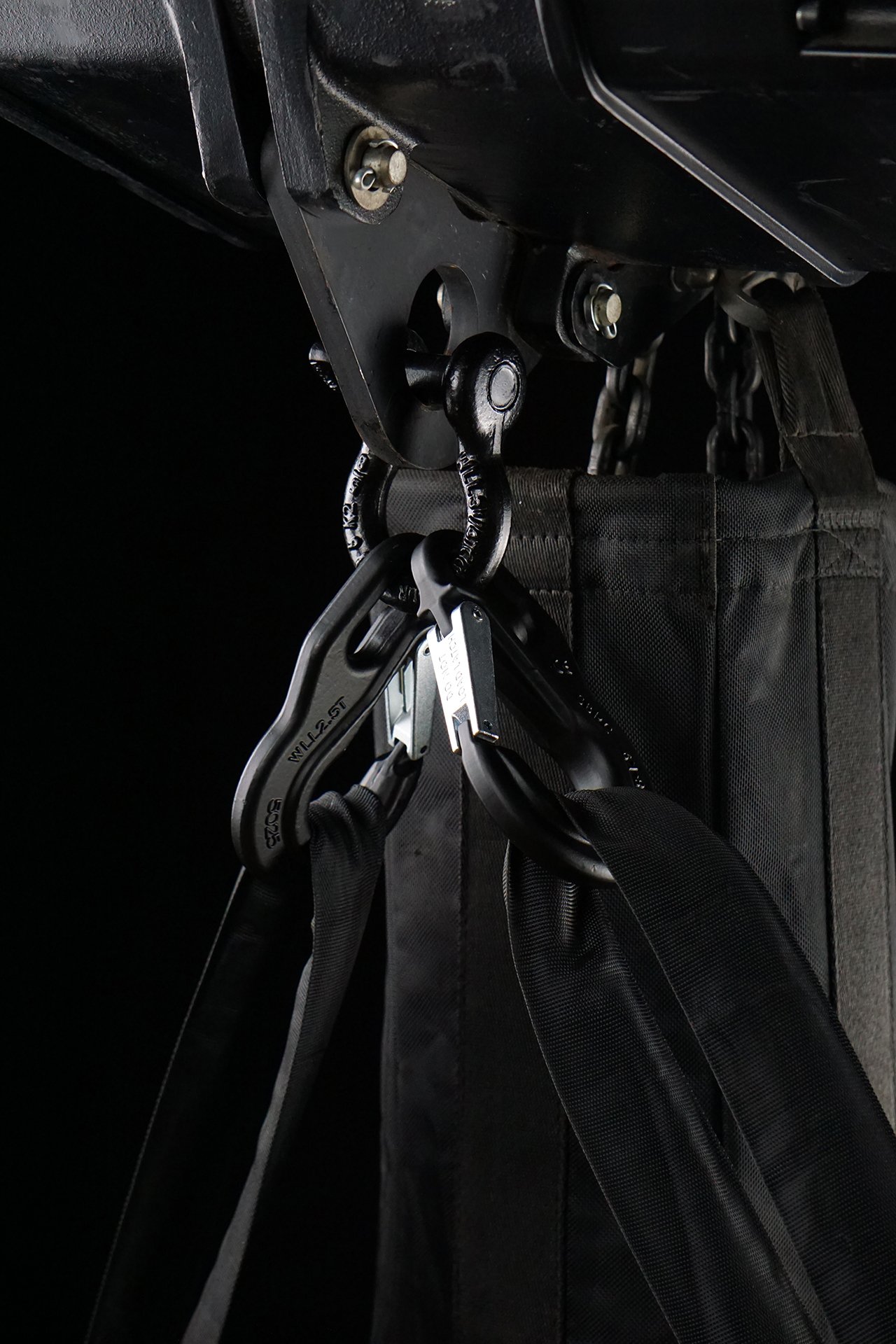

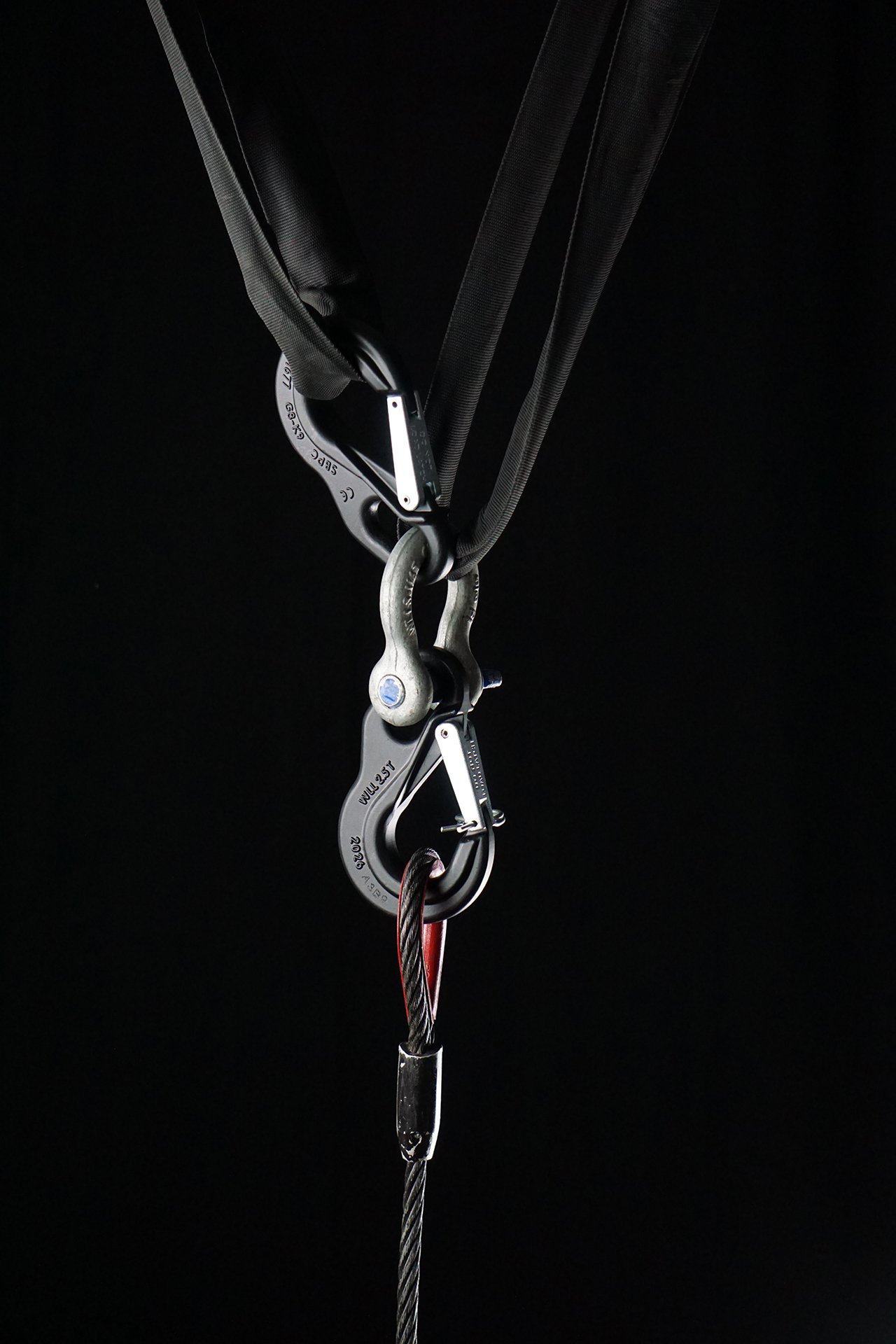

Yes. CanXio is compatible with common rigging equipment. Existing round slings, steel wire ropes, lifting chains, O-rings, eyes and standard shackles (≤ 3.25 t) can still be used.
Exclusively via Roadieworks.com. Or send us an enquiry via the contact form.
